Hochiki FirePro Xtinguish

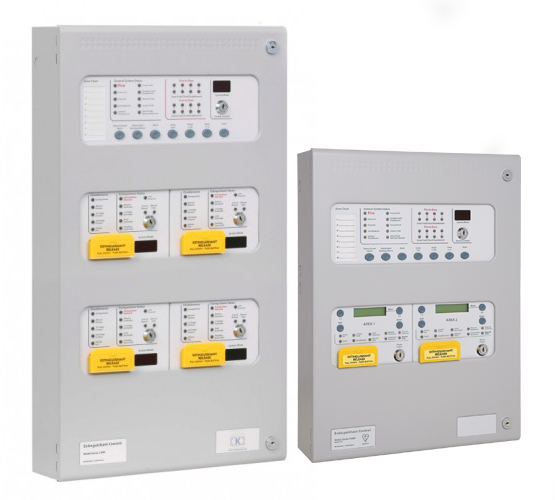

Multi-Area Extinguishant Control Panels
Features
Approved to EN12094-1, EN54-2 and EN54-4
2, 4 or 8 detection zones
1 to 4 extinguishant areas
Dual extinguishant outputs for each area (configurable as Main/ Reserve)
First and second stage sounder outputs for each area
First and second stage volt free changeover contacts for each area
Released volt free contact per area
Fault volt free contact per area
Programmable extinguishant delays
Programmable output duration
Countdown indicator shows time until release in seconds
Mode select and manual release controls per area
Monitored remote manual release input
Monitored remote Hold input
Monitored remote Mode select (door interlock) input
Monitored remote Released pressure switch input
Monitored remote Low Pressure switch input
Monitored Abort input
Serial connection for Sigma Si status units and ancillary boards
Description
Sigma XT+ control panels are multi-area extinguishant control panels complying with EN12094-1, EN54-2 and EN54-4.
Up to 8 zones of conventional detection with up to 4 extinguishant areas are available.
Stand alone extinguishant control units are also available with 2 monitored inputs to receive initiating signals from remote fire detection control pabels or addressable modules.
Each Extinguishant area has a comprehensive set of inputs and outputs and is configurable via a simple programming interface. All extinguishant areas may have up to 7 serially connected Sigma SI status indication and control units or anciallary relay boards connected via a simple 4 core cable.
The versatility of the control panel can be enhanced further by the fitting of up to 7 Sigma CP Ancillary boards (K580) or Sigma CP Sounder boards
(K461) to the RS485 serial bus. See datasheet DS39 and DS48.
For compatible status units see Sigma Si datasheet DS41.
